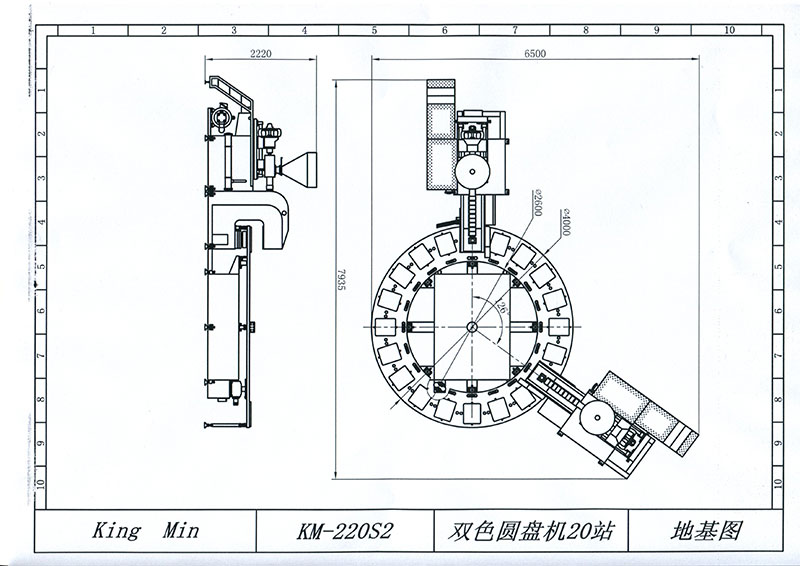

- Foundation Plans
-
1. The machine utilizes the industrial workstation computer and PLC to control.
2. Equipped with the high-efficient and energy-saving Servo control system, it can control the injection, the pressure and flow of mold opening/closing system accurately.
3. The mold plate is with the up and down cooling water device, which can cool the mold and mould the product quickly , it can perfect the product and increase the production.
4. The automatic opening mold aided design
5. Adopting the strengthening type C shape seat locking mechanism, the products not prone to burrs.
6. The machine is main for prefoam product and it is equipped with material suction, so it do not need human feeding.
-
Full Automatic Prefoam EVA Injection moulding Machine(Two /Three/ Four colors)
项目
ITEM
UNIT
KM-220S2C
KM-320S3C
KM-420S4C
使用原料
Raw Material
EVA
工作站數
Work Stations
Stations
20
合模力
Mold Clamping Force
kg
70000
容模空間
Space for Mold(L*W*H)
mm
450*270*200
螺桿直徑
Screw Diameter
mm
55*2
55*3
55*4
******射出量
Max.Injecting Capacity
cc
760*2
760*3
760*4
射出壓力
Injecting Pressure
kg/cm2
1200
射出速度
Injection Speed
cm/sec
10
螺桿轉速
Rotating Speed of Screw
r.p.m.
0-165
溫控段數
Temperature Control
sections
4*2
4*3
4*4
料管電熱能量
Heating Power of Barrel
kw
9.15*2
9.15*3
9.15*4
電機
Electricity
HP
38.3
54.7
71.1
總用電量
Total Electricity Consumption
kw
57.6
82.15
107.7
機器尺寸
Machine Dimension L*W*H
mm
10300*6000*2200
10300*7900*2200
10300*10300*2200
機器重量
Machine Weight
kg
14000
18000
22000
-
-
-
