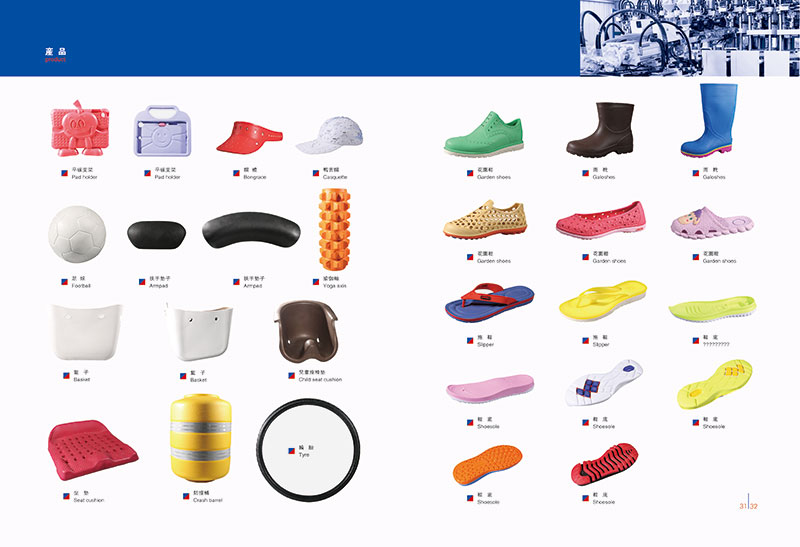

- Product Image
- Production Video

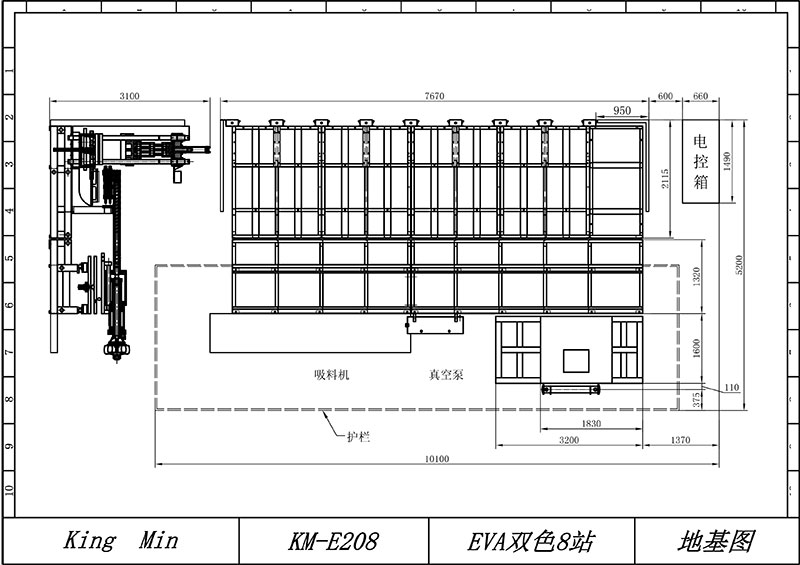

- Foundation Plans
-
1.Low operation height: The operation height fits in with the body ergonomics.
2. High mould opening stroke: The mould opening stroke is 350mm, which is not affected by any mould thickness.
3.Adjusting mechanism of mould: Mould thickness 100-350mm can be adjusted stepless.
4.Rapid mould opening: Acted by toggle mechanism, it opens the mould rapidly
5.Efficient vacuuming system
6.Energy-saving design: Using efficient heat insulation material and no need water circulation for mould station.
7.Available for alternative of one and two-color production mode.
8. Mid-plate is functionally auto-removed.
9. Available for both injection and pouring process.
-
Full Automatic Foam EVA Injection Molding Machine (TWO COLORS)
项目
ITEM
UNIT
KM-E206
KM-E208
KM-E210
合模系统MOULD-CLAMPING SYSTEM
工作站數
Work Stations
stations
6
8
10
合模力
Mold Clamping Force
kg
130000
130000
130000
開模行程
Mold Opening Stroke
mm
320
320
320
模板尺寸
Mold size(mm)
mm
330*550
330*550
330*550
標準模厚
Standard Mold Thickness
mm
100-350
100-350
100-350
電熱容量
Heating Power of Mold
kw/sta
9.6
9.6
9.6
射出系統 INJECTION UNIT
螺桿直徑
Screw Diameter
mm
60/65
60/65
60/65
******射出量
Max.Injecting Capacity
g
980/1150
980/1150
980/1150
射出壓力
Injecting Pressure
kg/cm2
1200
1200
1200
射出速度
Injection Speed
cm2
10
10
10
螺桿轉速
Rotating Speed of Screw
r.p.m.
0-120
0-120
0-120
用電量 ELECTRICITY CONSUMPTION
料管電熱能量
Heating Power of Barrel
kw
14.1
14.1
14.1
模具加熱板
Heating Power of Mold Plate
kw
57.6
76.8
96
伺服電機
Electricity
kw
49.2
49.2
49.2
總用電量
Total Electricity Consumption
kw
120.9
140.1
159.3
用油量
Using Amount of Oil
L
800
800
800
機器尺寸
Machine Dimension L*W*H
mm
8500*5200*3100
10100*5200*3100
12460*5200*3100
機器重量
Machine Weight
kg
25000
32000
38000
-
-
-
