1. Control system:This machine equipped with industrial computer,graphical human-computer interface,PLC module system.It can monitor the machine's movement, quantity, injection pressure, injection speed, output and so on. Easy to learn.
2. Mould clamping system:Act by toggle mechanism,it opens the mould rapidly.Low operation height,can apply to various styles of moulds flexibly.
3. Injection system:The measuring mechanism utilizes potentiometer detection and coordinates with the operation of PLC to control material quantity precisely.Driven by liner-track allowing speedy moving and precise positioning.
4. Hydraulic system:Machine is equipped servo system for energy saving,Reducing noise for improve production and better environment.Improve the stability and safety to be more efficiency.

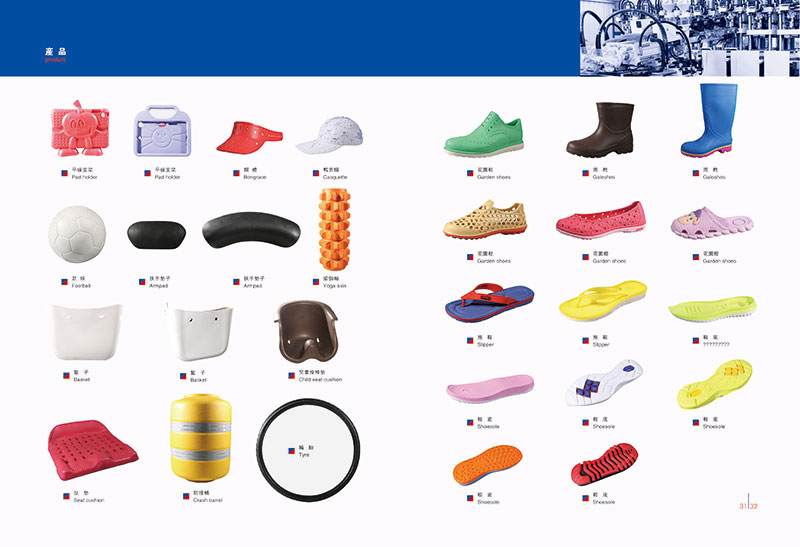

5. This machine is suitable for all kinds of shoe products .
-
Full Automatic Foam EVA Special Injection Moulding Machine (4 Injections )
项目
ITEM
UNIT
KM-E06SL4
KM-E08SL4
KM-E10SL4
工作站數
Work Stations
stations
6
8
10
合模力
Mold Clamping Force
kg
275000
275000
275000
開模行程
Mold Opening Stroke
mm
450
450
450
模板尺寸
Mold size(mm)
mm
330*600*2set
330*600*2set
330*600*2set
標準模厚
Standard Mold Thickness
mm
100-400
100-400
100-400
電熱容量
Heating Power of Mold
kw
19.2
19.2
19.2
螺桿直徑
Screw Diameter
mm
75*4
75*4
75*4
******射出量
Max.Injecting Capacity
cc
1500*4
1500*4
1500*4
射出壓力
Injecting Pressure
kg/cm2
1200
1200
1200
射出速度
Injection Speed
cm/sec
10
10
10
螺桿轉速
Rotating Speed of Screw
r.p.m.
0-165
0-165
0-165
料管電熱能量
Heating Power of Barrel
kw
30.4
30.4
30.4
模具加熱板
Heating Power of Mold Plate
kw
115.2
153.6
192
伺服電機
Electricity
kw
82
82
82
總用電量
Total Electricity Consumption
kw
227.6
266
304.4
用油量
Using Amount of Oil
L
800*2
800*2
800*2
機器尺寸
Machine Dimension L*W*H
mm
11800*5500*3250
14200*5500*3250
16600*5500*3250
機器重量
Machine Weight
kg
44000
55000
66000
-
-
