Full Automatic Rotary Type PVC/TPR Injection Moulding Machine(Two/Three/Four Colors) Views:578
  • Product Information
  • Specifications
  • Product Image
  • Production Video

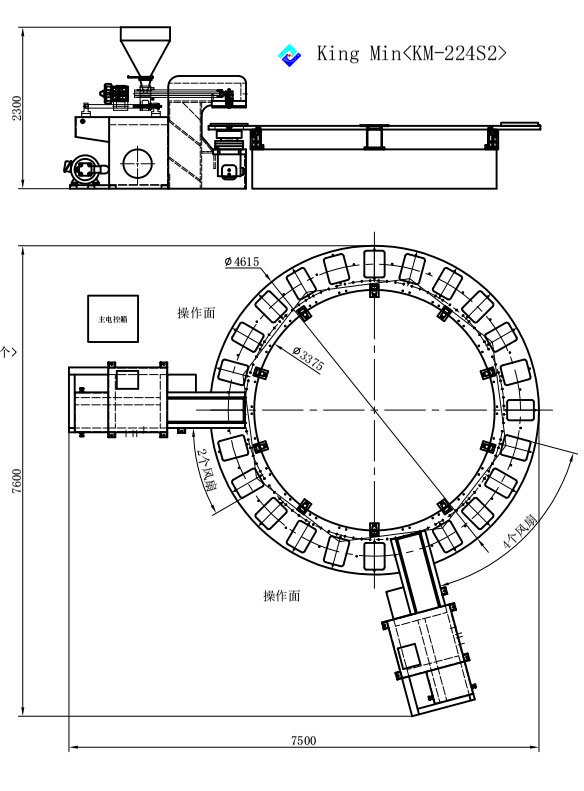

  • Foundation Plans
  • 1.  The wider space and cooling system for moulds:

    This model with the unique constructional design can accommodate the moulds of bigger size. Besides, the cooling system can simplify the operation and perfect the produce.


    2.  The Automatic High-Efficient Injector:

    It is uniquely combined the moving cylinder & spin rod In the injector. Therefore, the movement is quick, the injection is very stable and efficient.


    3.  The Programmable Logic Controller System:

    All the main mechanical movements, like material-injector, material-feeding, table-turning, mould-closing and so on, are controlled by the PC to ensure the preciseness and rapidity.


    4.  The Proportional Pressure Controller:

    The Digit-Proportional Pressure Controller can control the pressures of mould-closing, the first-injection and the second-injection and the material-feeding at the same time.


    5.  Flexible injection unit:

    The injection unit can be moved and adjusted according to the station requested.


  • Full Automatic Rotary Type PVC/TPR Injection Moulding Machine(Two/Three/Four  Colors)

    项目

    ITEM

    UNIT

    KM-220S2

    KM-224S3

    KM-210S3

    KM-224S2

    使用原料

    Raw Material


    PVC/TPR

    工作站數

    Work Stations


    20

    24

    10

    24

    合模力

     Clamping Force

    kg

    70000

    70000

    70000

    70000

    開模行程

     Opening Stroke

    mm

    290

    290

    290

    290

    容模空間

    Space for Mold(L*W*H)

    mm

    550*390*230

    550*390*230

    550*390*230

    550*390*230

    螺桿直徑

    Screw Diameter

    mm

    65*2

    65*2/70*1

    45*2/50*1

    65*2

    ******射出量

    Max.Injecting Capacity

    g

    660*2

    660/660/770

    270/270/390

    660*2

    射出壓力

    Injecting Pressure

    kg/cm2

    1200

    1200

    1200

    1200

    射出速度

    Injection Speed

    cm/sec

    10

    10

    10

    10

    螺桿轉速

    Rotating Speed of Screw

    r.p.m.

    0-165

    0-165

    0-165

    0-165

    料管電熱能量

    Heating Power of Barrel

    kw

    9.15*2

    9.15*3

    9.15*3

    9.15*2

    溫度控制器

    Thermo-Controller

    sets

    4*2

    4*3

    4*3

    4*2

    伺服電機

    Electricity

    kw

    44

    66

    66

    32.8

    總用電量

    Total Electricity Consumption

    kw

    62.3

    93.45

    93.45

    51.1

    機器尺寸

    Machine Dimension L*W*H

    mm

    7000*6500*2300

    1100*8500*2300

    9000*3500*2300

    7600*7500*2300

    機器重量

    Machine Weight

    kg

    13000

    18000

    11000

    15000
