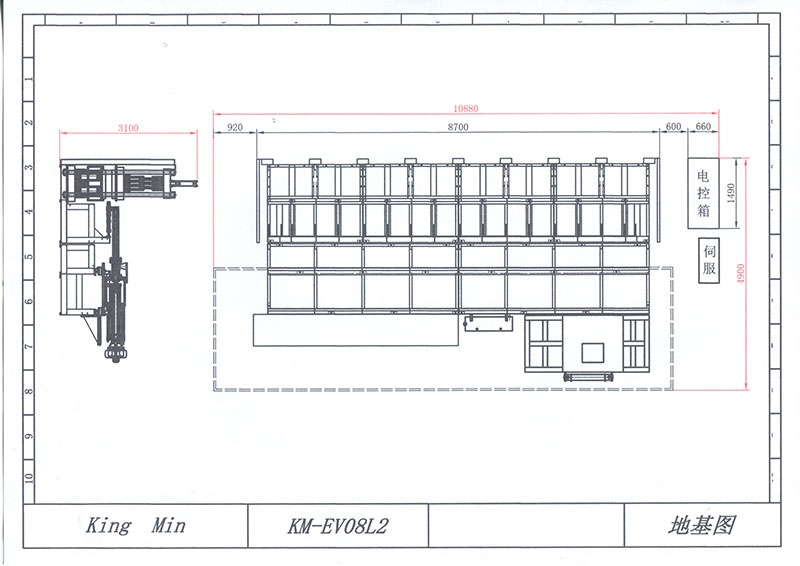

- Foundation Plans
-
1. This machine equipped with industrial computer, servo control system, control pressure and material quantity precisely.
2. Act by toggle mechanism utilizes potentiometer detection ,by fixed mould opening stroke 350mm,can apply to various styles of moulds flexibly.
3. Efficient vacuuming system suitable for t different products.
4. This machine is equipped with vacuum mode and monochromatic mode, which can be manufactured independently and in mixed mode
5. This machine is flexible in production, can be directly poured or placed prefoaming products to produce monochrome, two-color and multi-color products, high production capacity.
-
Full Automatic Vacuum Chamber Foam EVA Injection Moulding Machine
项目
ITEM
UNIT
KM-EV06L2
KM-EV08L2
KM-EV10L2
工作站數
Work Stations
stations
6
8
10
合模力
Mold Clamping Force
kg
170000
170000
170000
開模行程
Mold Opening Stroke
mm
400
400
400
模板尺寸
Mold size(mm)
mm
310*600*2set
310*600*2set
310*600*2set
標準模厚
Standard Mold Thickness
mm
90-200
90-200
90-200
電熱容量
Heating Power of Mold
kw
12
12
12
螺桿直徑
Screw Diameter
mm
60/65
60/65
60/65
******射出量
Max.Injecting Capacity
cc
980/1150
980/1150
980/1150
射出壓力
Injecting Pressure
kg/cm2
1200
1200
1200
射出速度
Injection Speed
cm/sec
10
10
10
螺桿轉速
Rotating Speed of Screw
r.p.m.
0-165
0-165
0-165
模具加熱板
Heating Power of Mold Plate
kw
72
96
120
料管電熱能量
Heating Power of Barrel
kw
14.1
14.1
14.1
伺服電機
Electricity
kw
49.2
49.2
49.2
總用電量
Total Electricity Consumption
kw
135.3
159.3
183.3
用油量
Using Amount of Oil
L
800
800
800
機器尺寸
Machine Dimension L*W*H
mm
8760*4900*33150
10880*4900*3150
13000*4900*3150
機器重量
Machine Weight
kg
37000
47000
57000
-
-
-
