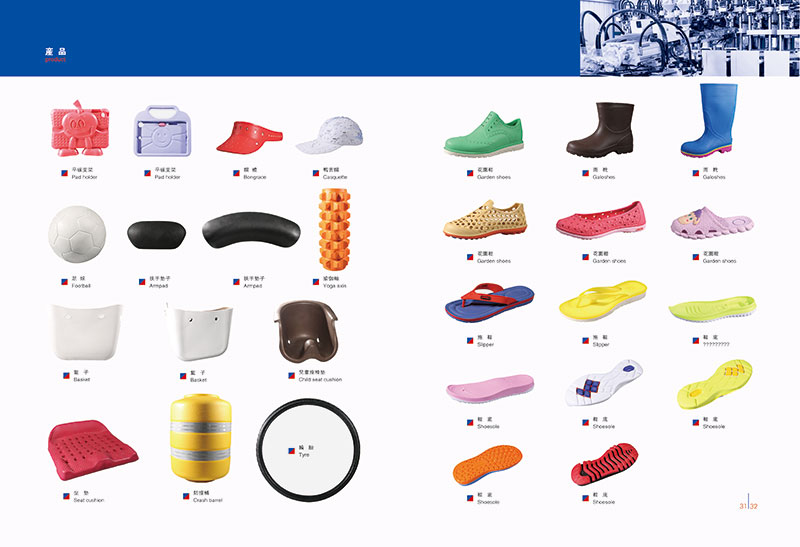

- Product Image
- Production Video

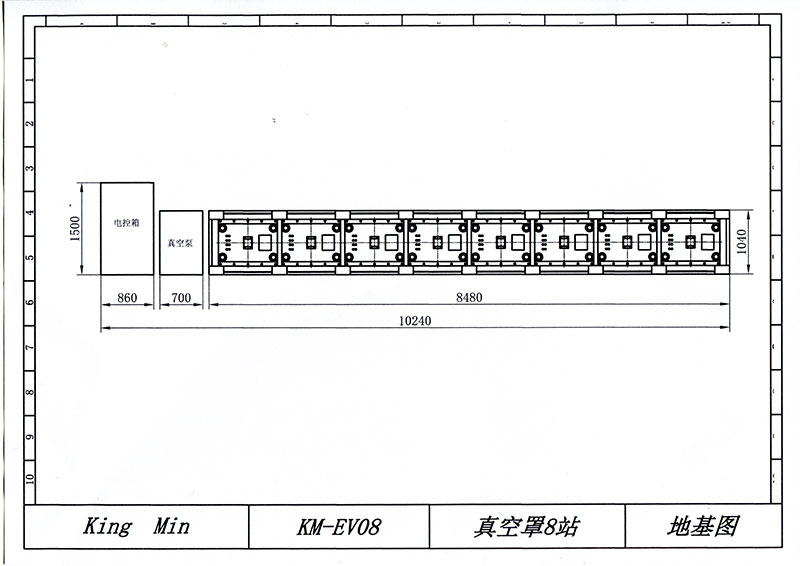

- Foundation Plans
-
1. Utilized with industrial workstation computer and servo control system, it can control the pressure and flow of mold opening/closing system accurately.
2. Acted by toggle structure, the stroke of mold-opening can be reach 450mm, which can be flexible for different shape of molds
3. With the humanization design, people can operate from the front and the back, which is easy to learn.
4. Equipped with the strong vacuuming system, it can be available for different production.
5. It is available for Pouring material directly or putting pre-foam product for producing, it can increase the production.
-
Vacuum Chamber Foam Moulding Machine
项目
ITEM
UNIT
KM-EV06
KM-EV08
KM-EV10
工作站數
Work Stations
stations
6
8
10
合模力
Mold Clamping Force
kg
170000
170000
170000
開模行程
Mold Opening Stroke
mm
450
450
450
模板尺寸
Mold size(mm)
mm
310*600*2set
310*600*2set
310*600*2set
標準模厚
Standard Mold Thickness
mm
90-130
90-130
90-130
電熱容量
Heating Power of Mold
kw
12
12
12
模具加熱板
Heating Power of Mold Plate
kw
72
96
120
伺服電機
Electricity
kw
22
22
22
總用電量
Total Electricity Consumption
kw
94
118
132
用油量
Using Amount of Oil
L
600
600
600
機器尺寸
Machine Dimension L*W*H
mm
8000*1500*3100
10000*1500*3100
12000*1500*3100
機器重量
Machine Weight
kg
26000
32000
40000
-
-
-
